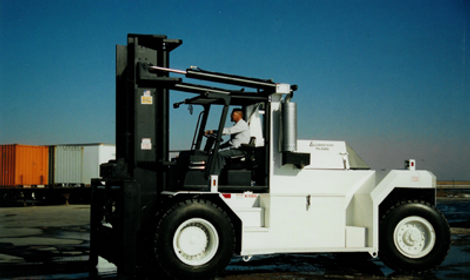

P/PT Series
I.C. Pneumatic


Setting the Standards for Heavy Duty, Hi-Capacity Lift Trucks

Printable Brochures
P250-P330H
P350-P550
PT165-PT330
PT Series Flyer



  • Short Wheelbase, Narrow Width for High Maneuverability

  • Rugged, Heavy-Duty Chassis

  • Cummins QSB 4.5L Diesel Engine - LP Engine Optional

  • Single Level Electric Control, Power Shift Transmission

  • Planetary Reduction Drive Axle

  • 14" Wet Disc Brakes, Hydraulic Actuation

  • Unitized, Welded Main Frame

  • Alloy Steel, I-Beam Design Steel Axle

  • Full Hydrostatic Steering

  • Open Operator Stations, Enclosed Cab Optional

  • Hi-Visibility, Two-Stage Mast Roller



Note: Mast, carriage, fork, tilt, hydraulic system, transmission, counterweight, protective, and attachment options, along with engine and operator accessories, are available upon request.




Models and Specifications



P330 - 33,000 lbs., @ 24" Load Center

P330H - 33,000 lbs., @ 36" Load Center

P360 - 36,000 lbs., @ 24" Load Center

P360H - 36,000 lbs., @ 36" Load Center

P400 - 40,000 lbs., @ 36" Load Center

P450 - 45,000 lbs., @ 36" Load Center

P500 - 50,000 lbs., @ 36" Load Center

PL520 - 52,000 lbs., @ 48" Load Center

P550 - 55,000 lbs., @ 36" Load Center

P600 - 60,000 lbs., @ 48" Load Center

P650 - 65,000 lbs., @ 48" Load Center

P700 - 70,000 lbs., @ 48" Load Center

P800 - 80,000 lbs., @ 48" Load Center

P950 - 95,000 lbs., @ 48" Load Center

P1100 - 110,000 lbs., @ 48" Load Center



Solid Tire - Pneumatic Profile

PT165 - 16,500 lbs., @ 24" Load Center

PT180 - 18,000 lbs., @ 24" Load Center

PT200 - 20,000 lbs., @ 24" Load Center

PT225 - 22,500 lbs., @ 24" Load Center

PT250 - 25,000 lbs., @ 24" Load Center

PT300 - 30,000 lbs., @ 24" Load Center

PT330 - 33,000 lbs., @ 24" Load Center
